Prevailing Torque Type Hexagon Nuts (non-metallic insert)

Nylon Insert Lock Nut or nylon lock nut, nyloc nut contains an added nylon ring within the nut that helps lock the nut into place more securely. The most popular used are nylon lock hexagon nuts which compatiable with Hexagon Head Bolts (Hex bolt).

Nylon lock nuts have a small nylon ring at one nut end that forms slightly smaller hole than the threaded hole going through the nut. When the nut is screwed onto a bolt, the bolt has to force its way through the smaller opening, causing the nylon to stretch. This stretching creates a huge amount of friction between the nut and the bolt, allowing the nut to stay tight for long periods of time without coming loose. Nylon lock nuts are especially useful for applications that involve a lot of vibration that would cause regular nuts to come loose. Transhow Fasteners keep In-Stock sales for the standard nylon lock nuts as follows,

DIN985 Nylon Lock Hexagon Nuts, Prevailing torque type hexagon nuts with non-metallic insert, In-Stock sales size M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M24, M27, M30. Other sizes available after order or negotiable for customized specifications. ISO 10511 Prevailing torque type hexagon thin nuts.

DIN982 Heavy type nylon lock nuts, Prevailing torque type hexagon nuts with non-metallic insert, In-Stock sales size available from M5 to M24. ISO 7040 Prevailing torque type hexagon nuts with non-metallic insert.

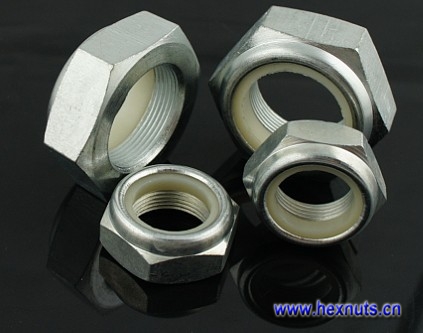

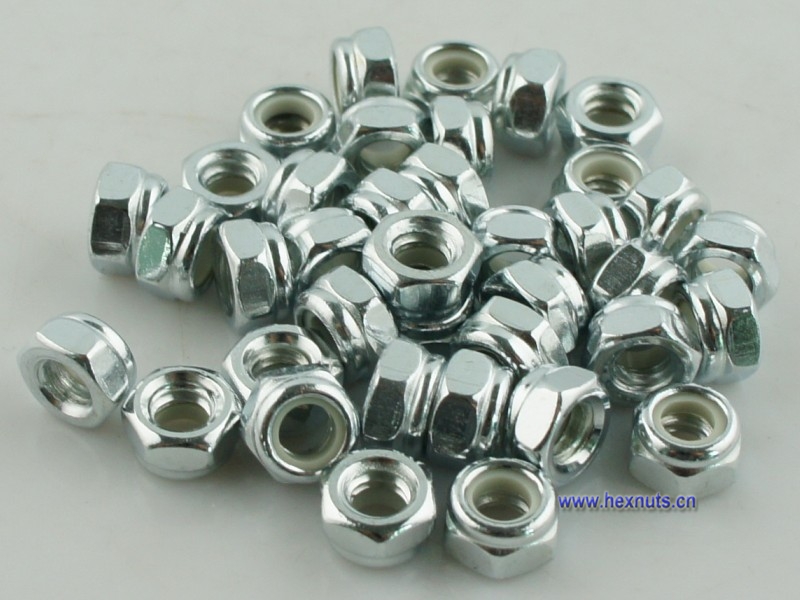

ASME/ANSI B18.16.6-2008 Prevailing torque type hexagon nuts with non-metallic insert, NE type Nylon lock Nuts; NTE thin type nylon lock nuts.

ISO10512 Prevailing torque type hexagon nuts with non-metric fine pitch thread.

ISO10511 Prevailing torque type hexagon thin nuts with non-metallic inserts.

ISO7041 Prevailing torque type hexagon nuts with non-metallic insert.

ISO7040/DIN6924 Prevailing torque type hexagon thick nuts with non-metallic insert.

UNI7473 Prevailing torque type hexagon thin nuts with nonmetallic insert.

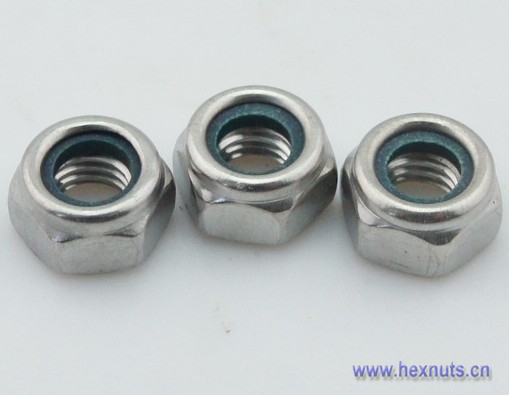

We offer low carbon steel, middle carbon steel, stainless steel nylon lock hex nuts. If you are looking for metal insert lock nut (prevailing torque all metal type lock nut), please click here!

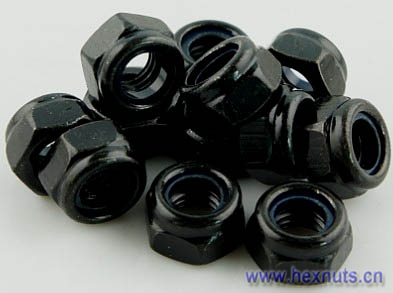

To meet various requirements for corrosion resistant or strength, nylon lock nuts could be further treated such as black zinc, white zinc, blue/white zinc coating, nickle coating, chrome plating, dacomate and wax etc. Please indicate this requirements with your inquiry.
